Telescopic Boom Lift 65ft

Genie S-65XC

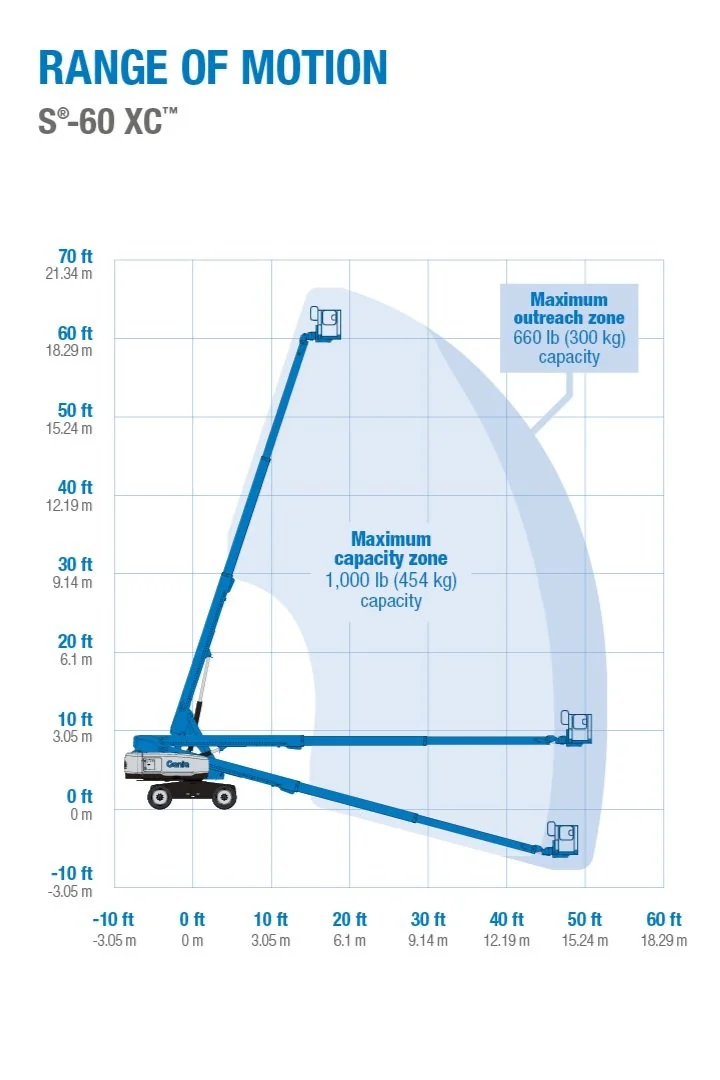

Working height maximum: 71’

Platform height maximum: 65’

Horizontal reach maximum: 54’ 2”

Below ground reach: 8’ 8”

Platform length: 3’

Platform width: 8’

Height: 9’ 3” (stowed)

Length: 32’ (stowed)

Length: *jib tucked under* 25’ 7’ (transport)

Width: 8’ 2”

Wheelbase: 8’ 2”

Ground clearance: 16.3”

Maximum lift capacity: 660 lbs (unrestricted) / 1,000 lbs (restricted)

Platform rotation: 160°

Vertical jib rotation: 133° (+ 79° /- 54°)

Turntable rotation: 360° continuous

Turntable tailswing: 4’ 7.5”

Drive speed: 3.0 mph (stowed) 1 ft/s (raised)

Gradeability: - 45% (stowed)

Turning radius: 7’ 9” (inside) / 18’ 2” (outside)

Controls: 12V DC proportional

Tyres: 355/55D 625

Power source: Deutz D2011L03i, 48 hp (36 kW)

Auxiliary power: 12V DC

Fuel tank capacity: 35 gal (Diesel)

Weight: 25,733 lbs

4WD

Delivery only

12kw AC generator welder ready 220v/60hz
