Articulating Bucket Lift 50ft

Genie TZ-50/30

Working height*: 55’ 6”

Platform height: 49’ 6”

Entry height: 1’ 8”

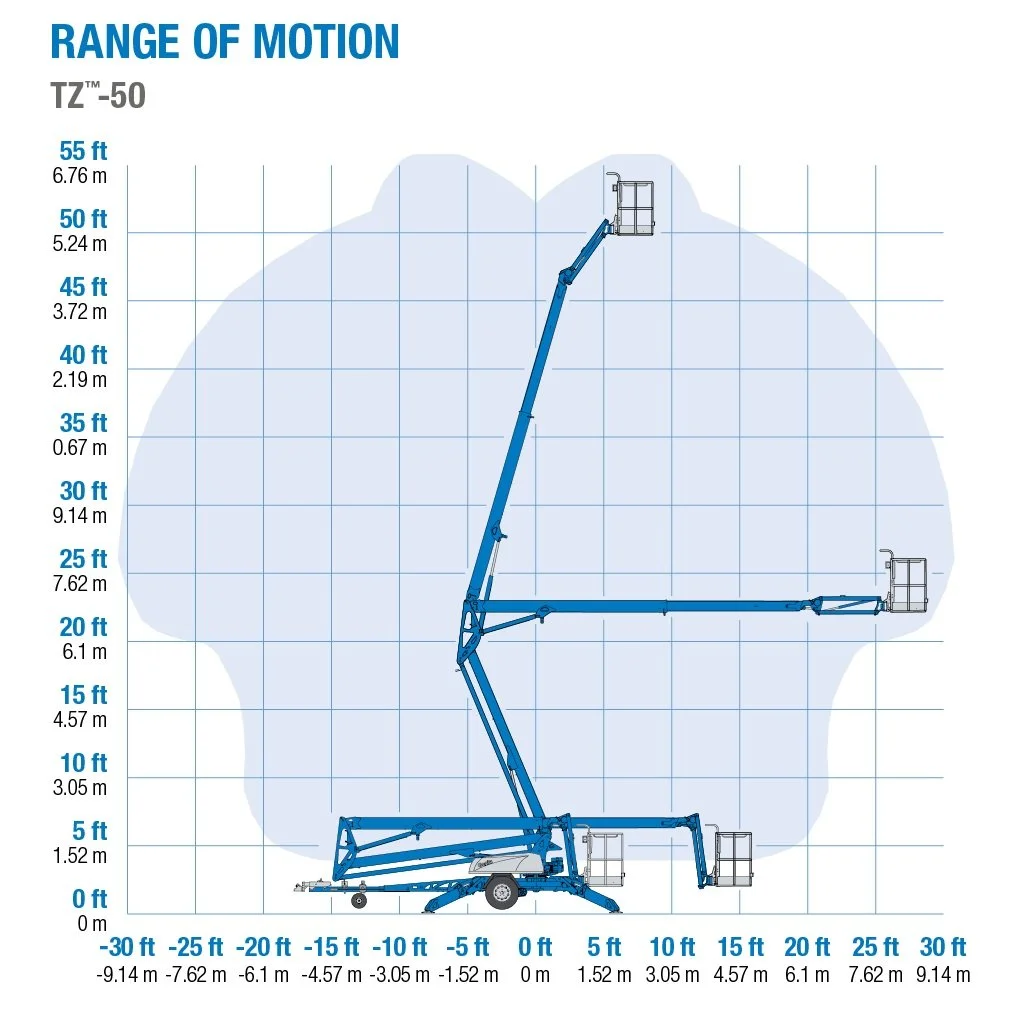

Horizontal reach: 29’ 2”

Clear outreach: 23’ 1”

Platform Dimensions: L 2’ 2.8” x W 3’ 8”

Dimensions: L 23’ 6” x W 5’ 6” x H 6’ 10” (stowed)

Ground clearance: 10” (center)

Outrigger footprint: L 14’ 4” x W 14’ 4”

Lift capacity: (ANSI, CSA) - standard 500 lbs

Jib boom: 4’ 1”

Jib working range: 135°

Self leveling platform 2.5°

Platform rotation option: 160° hydraulic

AC power to platform

Turntable rotation: 359° non-continuous

Outrigger leveling capability: 11°

Drive speed: 0.85 mph

Gradeability: 20% (stowed)

Towing speed rate: 60 mph

Tongue weight: ANSI, CSA 400 lbs

Controls: Variable speed system

Fuel tank capacity: .95 gal

Hydraulic tank capacity: 4.75 gal 18 L

Hydraulic system capacity: 8.0 gal 30 L

Weight: 4,400 lbs

*subjected to height of worker
